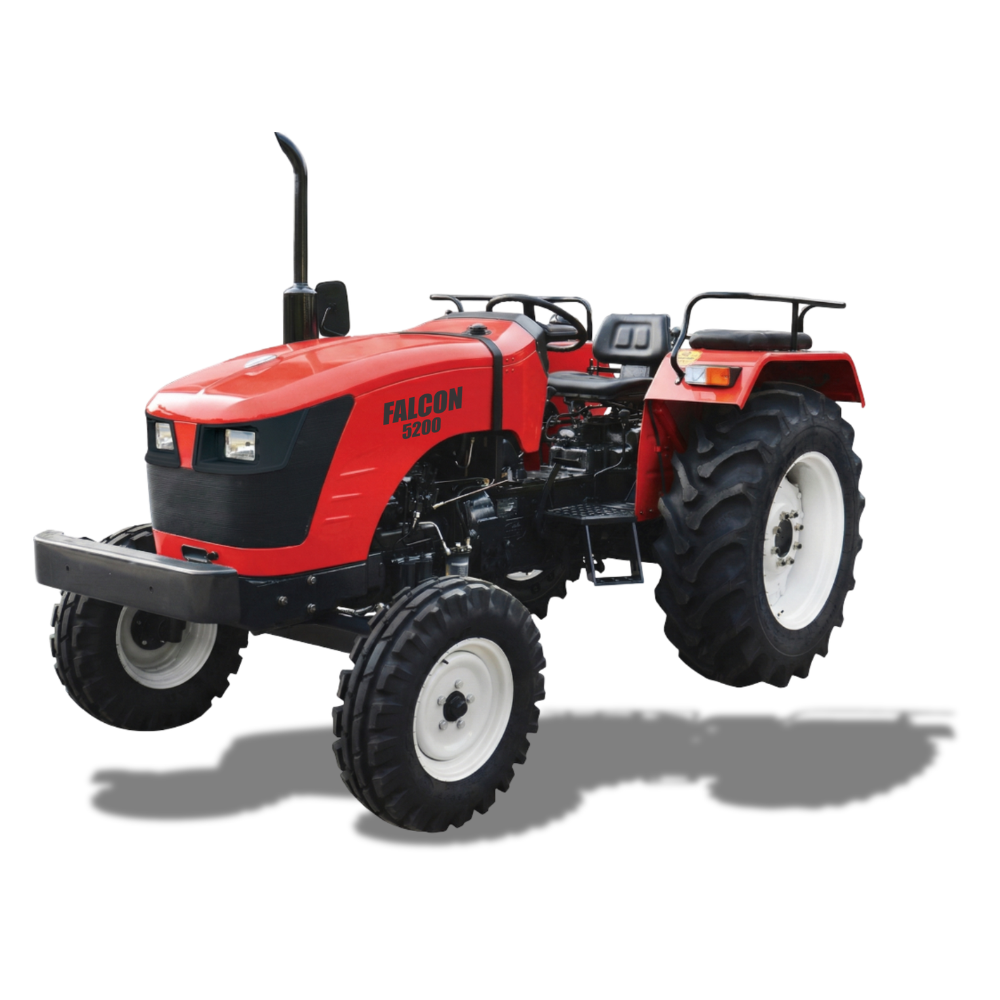

Falcon 5200 – 2WD
Falcon 5200 2WD is a powerful 50 HP tractor designed to handle a wide range of agricultural activities with efficiency and reliability. It features a 3-cylinder naturally aspirated engine that delivers consistent performance and fuel efficiency during long working hours. The tractor comes with an 8F + 2R gearbox that ensures smooth gear shifting and better control in different field conditions. With a 2000 kg lifting capacity and advanced hydraulic system, it easily supports heavy farm implements. Built for durability and productivity, Falcon 5200 2WD is an excellent choice for modern farming operations.
| Specification | Details |
|---|---|
| Model | 5200 2WD |
| HP Category | 50 HP |
| Engine Type | Four Stroke Naturally Aspirated |
| No. of Cylinders | 3 |
| Bore / Stroke | 105 / 118 mm |
| Rated Engine RPM | 2200 |
| Displacement | 3066 cc |
| Fuel Pump | In Line Type |
| Air Cleaner | Dry with Clogging Sensor |
| Cooling System | Water Cooled |
| Clutch Type | Heavy Duty Single (Dual Optional) with Dry Friction Plate with Pads |
| Clutch Plate Size | 278.7 / 279.1 mm |
| Gear Box | 8F + 2R |
| Hydraulic Type | 2 Lever ADDC |
| Hydraulic Pump | Gear Type |
| Linkage | TPL Category I & II |
| Lifting Capacity | 2000 kg |
| Steering | Hydrostatic Power Steering |
| PTO Type | Live PTO (Optional GPTO Reverse PTO) |
| PTO Splines | 6 (Optional 21) |
| PTO Speed | 540 (Optional 1000) |
| Fuel Tank | 67 L |
| Engine Sump | 6.65 L |
| Cooling System Capacity | 10.1 L |
| Transmission & Hydraulic | 55 L |
| Steering System | 2 L |
| Battery | 12V, 80Ah |
| Alternator | 12V, 42A |
| Starter Motor | 12V, 2.7 kW |
| Minimum Turning Radius | 3.97 m |
| Front Tyre | 6.00 x 16.00 |
| Rear Tyre | 14.90 x 28.00 (16.9 x 28 Optional) |
| Weight | 2060 kg |
| Brakes | Multi Disc Oil Immersed (Optional Dry Disc) |
| Length / Width | 3900 x 1820 mm |
| Height | 2245 mm |
| Ground Clearance | 430 mm |
| Wheel Base | 2090 mm |
| Wheel Track (Front / Rear) | 1320 x 1410 mm |
